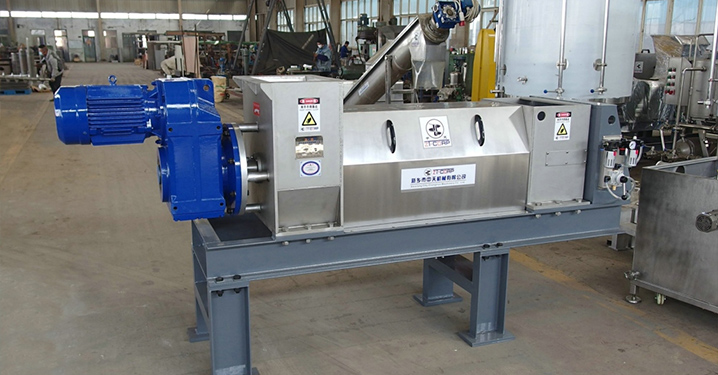

This is a screw dehydrator that can be widely used in food factories to handle materials that need to be dehydrated during food processing. Such as: pectin fiber dehydration, Sichuan pepper juice, food additives dehydration. It can also be used for the disposal of scraps in food factories. Such as: pickle scraps reduction, potato peel reduction, tea grounds coffee grounds reduction, seasoning reduction, etc.
Send Message
Our screw press dehydrator have 9 models, which can meet the needs of different production. For large capacity screw press machine, you can choose feeding and discharging conveying equipment of our factory, then equipped with electronic control system, which achieve one-click operation.
You can also customize the screw press dehydrator for your demands according to the material you handle.
1.Continuous operation, save human cost.
2.Low speed stable operation, material temperature does not rise.
3.Dewatering juice for organic materials.
4.Separate slag and liquid for inorganic materials.
|
Model |
Capacity（t/h） |
screw diameter（mm） |
rotate speed（r/min） |
Power（kw） |
· |
Weight（t） |
|
ZTZY-120 |
0.1～0.3/0.26 |
120 |
30 |
2.2/3 |
1900×420×700 |
0.5 |
|
ZTZY-180 |
0.3～1/0.5 |
180 |
20 |
5.5 |
2500×550×800 |
0.8 |
|

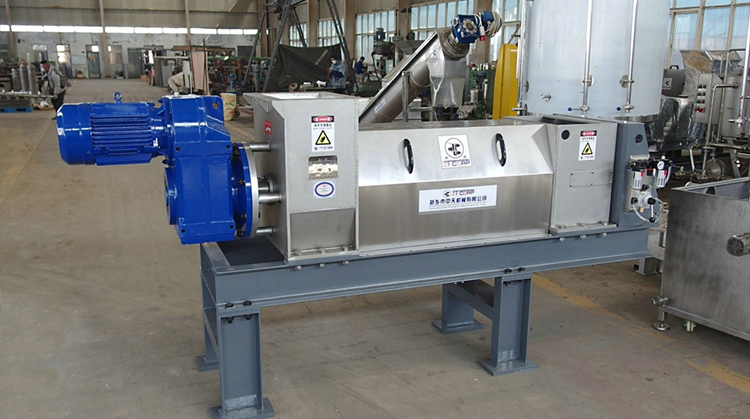

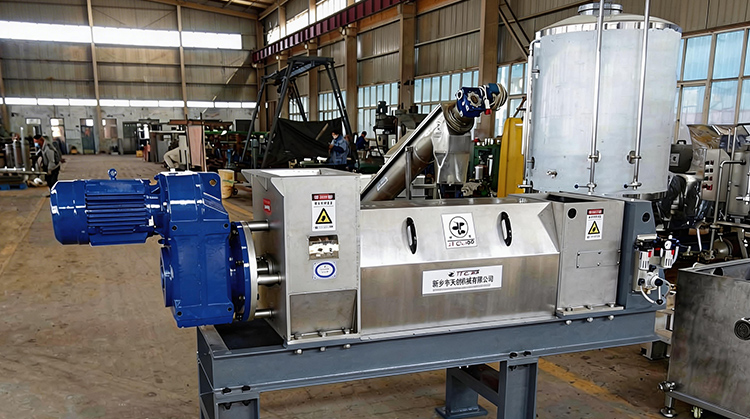

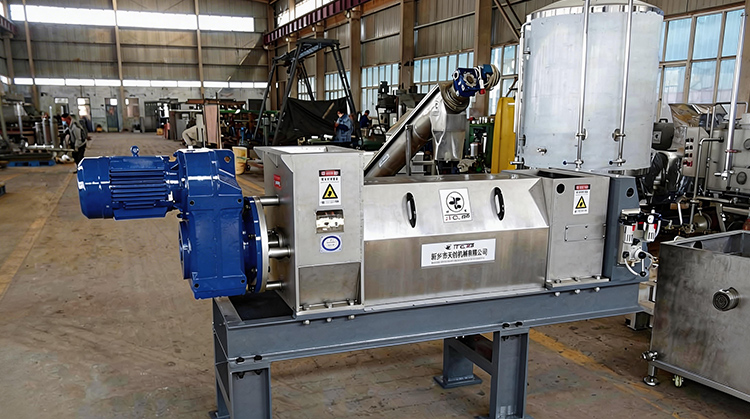

ZTZY-250 |
0.8～3/0.93 |
250 |
16 |
7.5 |
3100×650×900 |
1 |
|
ZTZY-315 |
2～5/1.6 |
315 |
16 |
11 |
4100×790×1320 |
2 |
|
ZTZY-400 |
5～13/2 |
400 |
10 |
22 |
4700×990×1420 |
4 |
|
ZTZY-500 |
8～18/3.3 |
500 |
9 |
37 |
6100×1200×1500 |
6 |
|
ZTZY-630 |
15～35/4.2 |
630 |
9 |
45 |
6800×1350×1650 |
7.5 |
|
ZTZY-800 |
25～50/7 |
800 |
7 |
75 |
7500×2300×2200 |
9 |
|
ZTZY-1000 |
30～70/8.5 |
1000 |
6 |
90 |
8100×2700×2600 |
12 |
