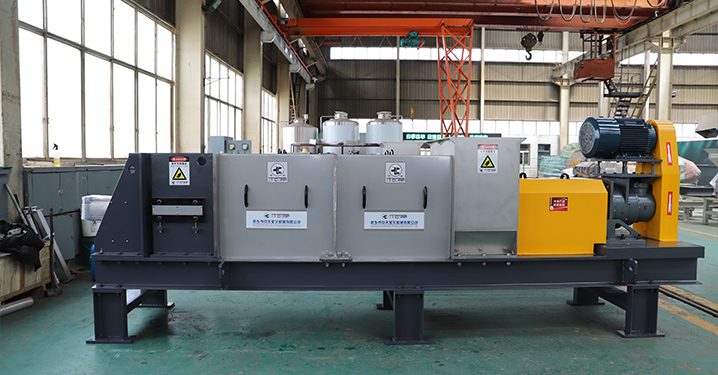

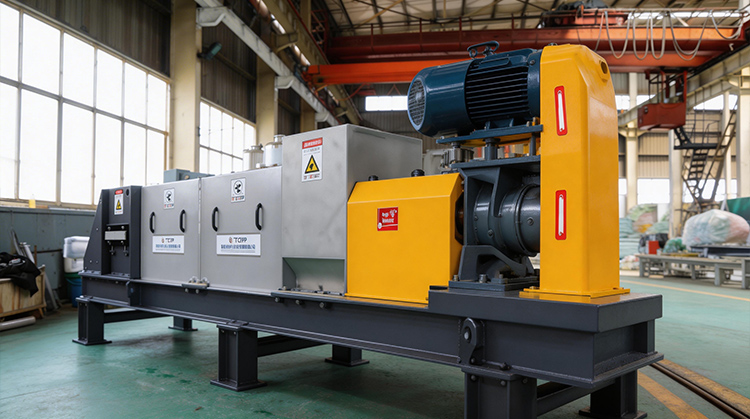

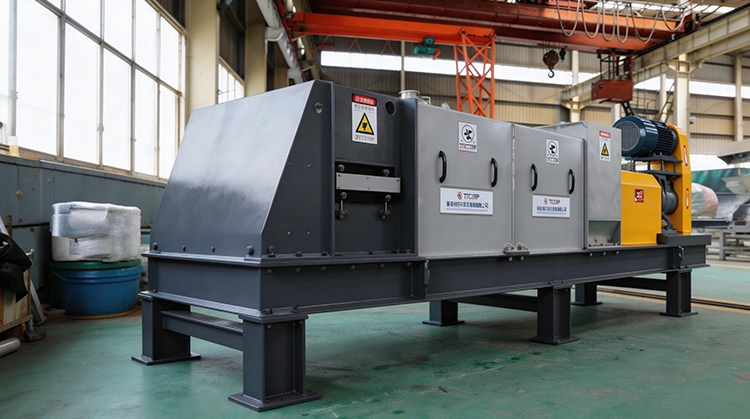

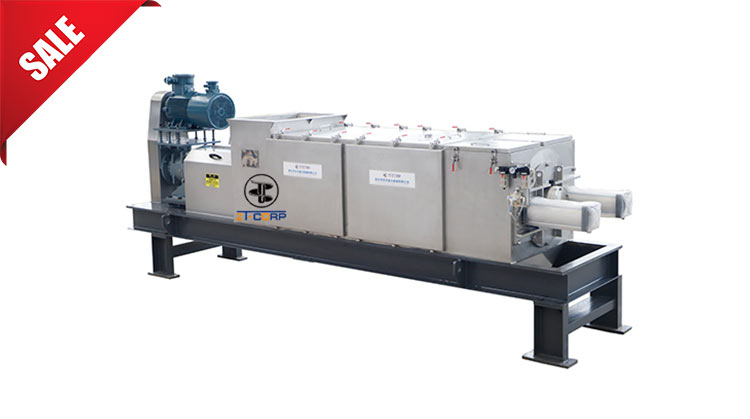

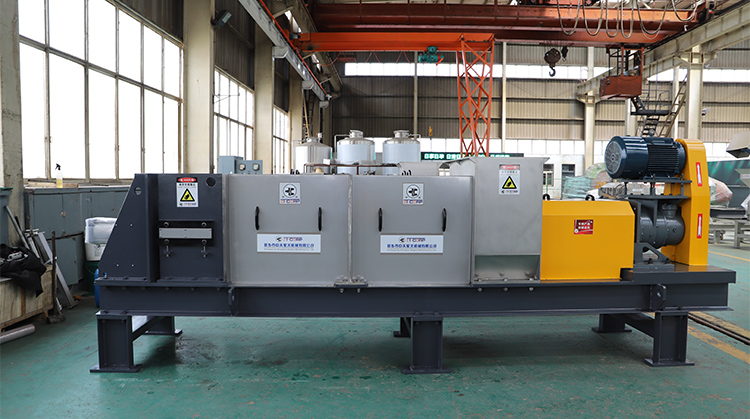

This is a fully sealed screw press dehydrator, it can be used to deal with materials containing alcohol solvent. The machine is equipped with explosion-proof motor. We reserved a extraction holes and promise all connection are fully sealed, the whole machine contact material part are food grade 304 stainless steel material. It’s pneumatic back pressure on the back end, which can flexibly adjust the pressure size, and extend long service life.
Send Message
This design effectively avoid the situation of no discharge due to weak materials or uneven discharge dryness due to aging of back pressure parts.
If you have special requirements for your materials, you can contact us in time, we provide OEM on screw press machine.
1.Continuous operation, save human cost.
2.Fully automatic machine with continuous control of performance, screw speed, counter-pressure, and dewatering.
3.Low speed stable operation, material temperature does not rise.
4.Dewatering juice for organic materials.
5.Separate slag and liquid for inorganic materials.
|
Model |
Capacity（t/h） |
screw diameter（mm） |
rotate speed（r/min） |
Power（kw） |
· |
Weight（t） |
|
ZTZY-120 |
0.1～0.3/0.26 |
120 |
30 |
2.2/3 |
1900×420×700 |
0.5 |
|
ZTZY-180 |
0.3～1/0.5 |
180 |
20 |
5.5 |
2500×550×800 |
0.8 |
|
ZTZY-250 |
0.8～3/0.93 |
250 |
16 |
7.5 |
3100×650×900 |
1 |
|
ZTZY-315 |
2～5/1.6 |
315 |
16 |
11 |
4100×790×1320 |
2 |
|
ZTZY-400 |
5～13/2 |
400 |
10 |
22 |
4700×990×1420 |
4 |
|
ZTZY-500 |
8～18/3.3 |
500 |
9 |
37 |
6100×1200×1500 |
6 |
|
ZTZY-630 |
15～35/4.2 |
630 |
9 |
45 |
6800×1350×1650 |
7.5 |
|
ZTZY-800 |
25～50/7 |
800 |
7 |
75 |
7500×2300×2200 |
9 |
|
ZTZY-1000 |
30～70/8.5 |
1000 |
6 |
90 |
8100×2700×2600 |
12 |
