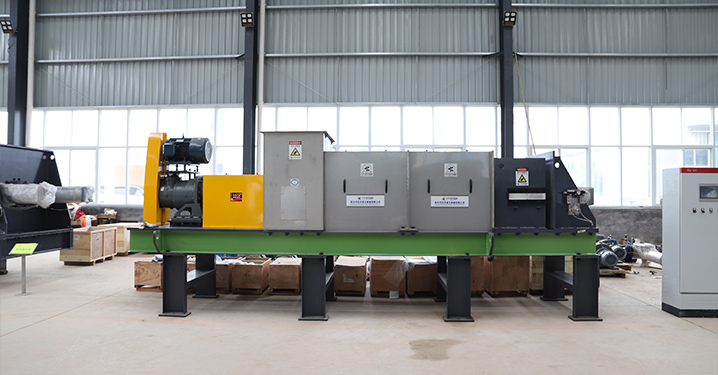

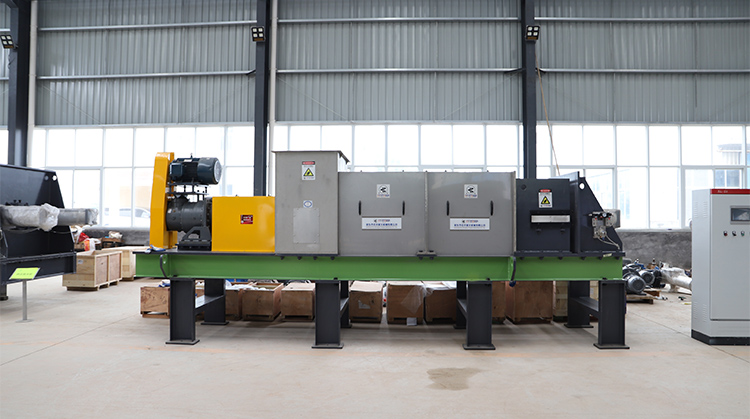

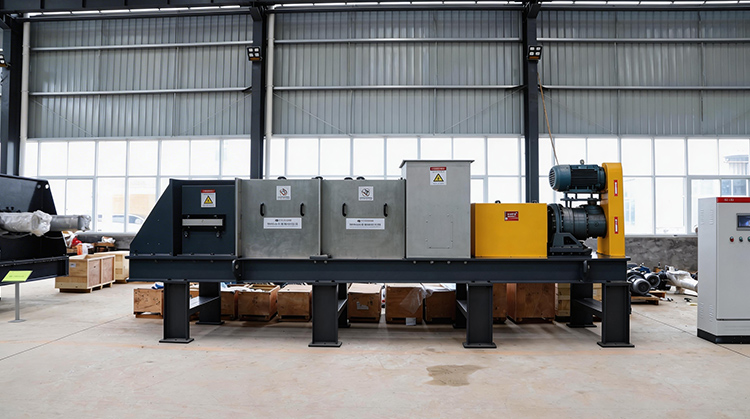

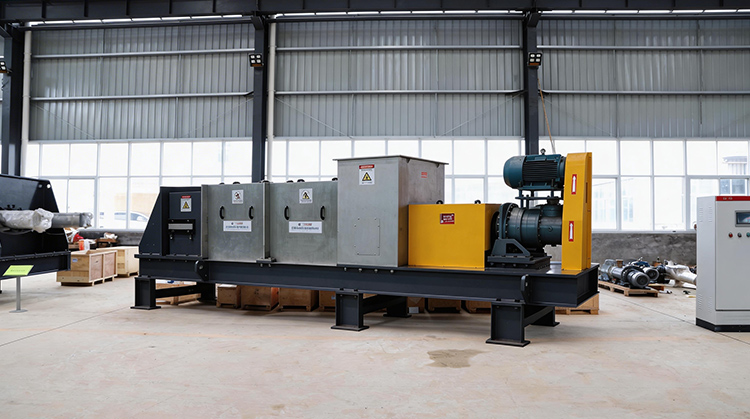

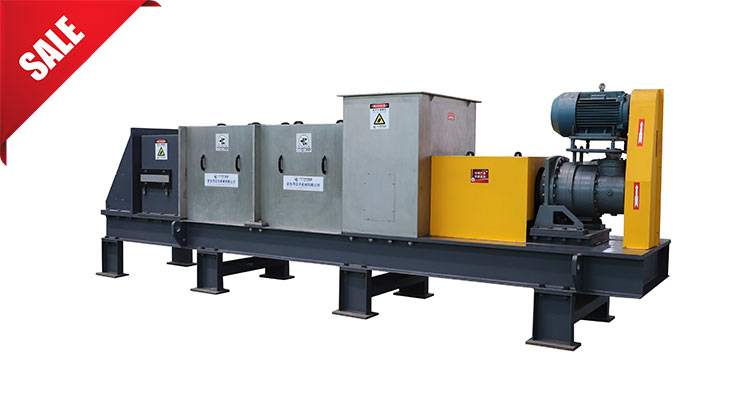

The pulp dehydrator is a dehydration equipment independently developed by our company and is used to remove moisture from paper pulp. Screw presses are used in the paper industry and are often called squeezers or presses. The pulp press can continuously press and filter a large amount of pulp.
Send Message
The product is made of wear-resistant, acid and alkali-resistant materials. It has significant features such as large processing capacity, high dehydration efficiency, and long service life. It is widely used in paper pulp, bamboo fiber, and papermaking tail pulp. Kraft pulp is equal to solid-liquid separation, dehydration, and squeezing in various industries; the equipment is simple to operate and operates continuously, reducing worker labor intensity and improving output and dewatering efficiency. The supporting equipment it is equipped with has a long service life, ensuring the performance and performance of the filter press. quality.
The performance of pulp dewatering machine depends on many factors, such as pressure, speed, temperature, etc. Therefore, before using a pulp dewatering machine, these factors need to be considered comprehensively to ensure the best performance and results.
1.Continuous operation, save human cost.
2.Low speed stable operation, material temperature does not rise.
3.Dewatering juice for organic materials.
4.Separate slag and liquid for inorganic materials.
|
Model |
Capacity（t/h） |
screw diameter（mm） |
rotate speed（r/min） |
Power（kw） |
· |
Weight（t） |
|
ZTZY-120 |
0.1～0.3/0.26 |
120 |
30 |
2.2/3 |
1900×420×700 |
0.5 |
|
ZTZY-180 |
0.3～1/0.5 |
180 |
20 |
5.5 |
2500×550×800 |
0.8 |
|
ZTZY-250 |
0.8～3/0.93 |
250 |
16 |
7.5 |
3100×650×900 |
1 |
|
ZTZY-315 |
2～5/1.6 |
315 |
16 |
11 |
4100×790×1320 |
2 |
|
ZTZY-400 |
5～13/2 |
400 |
10 |
22 |
4700×990×1420 |
4 |
|
ZTZY-500 |
8～18/3.3 |
500 |
9 |
37 |
6100×1200×1500 |
6 |
|
ZTZY-630 |
15～35/4.2 |
630 |
9 |
45 |
6800×1350×1650 |
7.5 |
|
ZTZY-800 |
25～50/7 |
800 |
7 |
75 |
7500×2300×2200 |
9 |
|
ZTZY-1000 |
30～70/8.5 |
1000 |
6 |
90 |
8100×2700×2600 |
12 |
