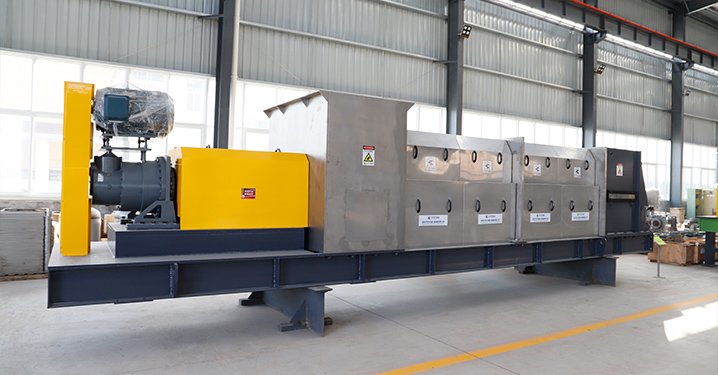

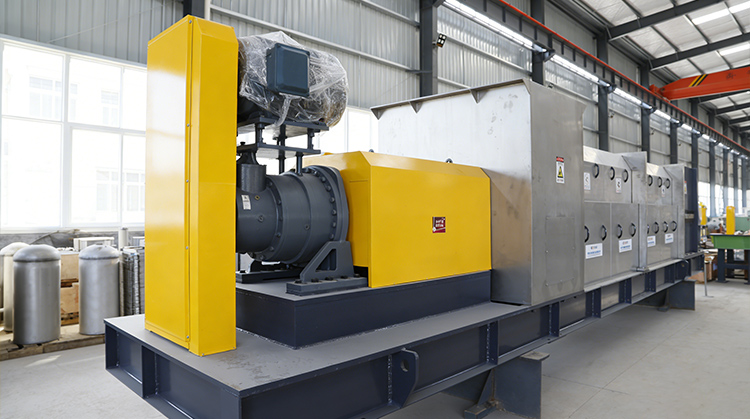

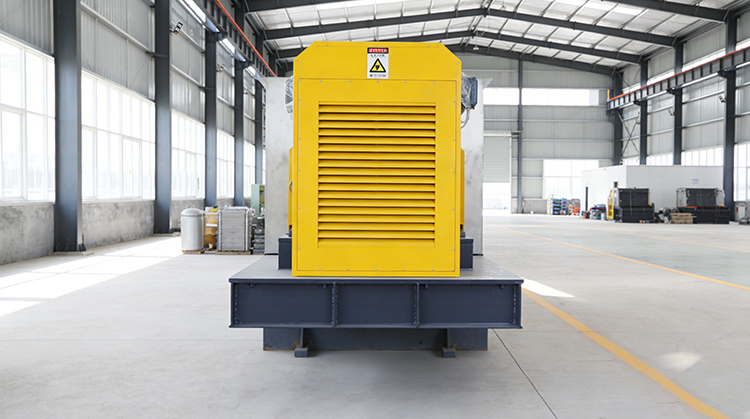

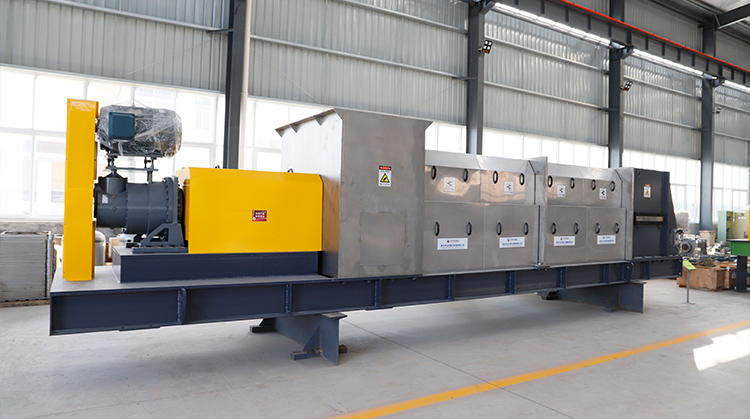

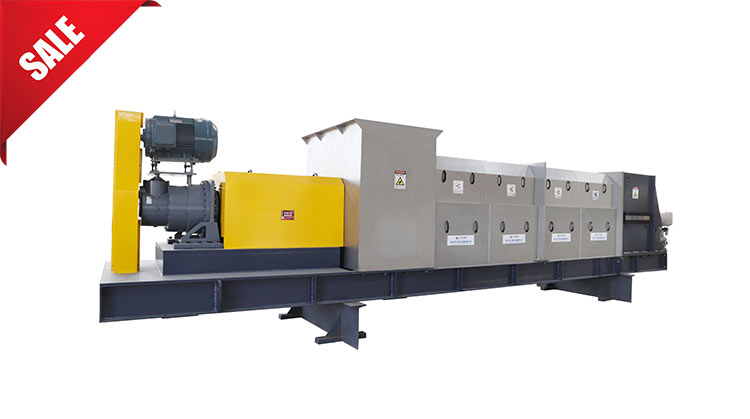

The dewatering screw press is designed according to the superposition compression principle, mainly achieves the purpose of material press separation by the cooperation of the feeding box, spiral, screen stencil and tail cone.
Send Message
Material to be treated is uniformly transported to the inlet of the dewatering screw press equipment, by means of a pump or a spiral conveyor, filtered by a spiral blade and screen, then water or juice is collected through a sieve to a water tray below the machine.
After being taken up by the pipeline, the slag separated by the press is conveyed to the storage place through the conveyor belt.
1.Continuous operation, save human cost.
2.Low speed stable operation, material temperature does not rise.
3.Dewatering juice for organic materials.
4.Separate slag and liquid for inorganic materials.
|
Model |
Capacity（t/h） |
screw diameter（mm） |
rotate speed（r/min） |
Power（kw） |
· |
Weight（t） |
|
ZTZY-120 |
0.1～0.3/0.26 |
120 |
30 |
2.2/3 |
1900×420×700 |
0.5 |
|
ZTZY-180 |
0.3～1/0.5 |
180 |
20 |
5.5 |
2500×550×800 |
0.8 |
|
ZTZY-250 |
0.8～3/0.93 |
250 |
16 |
7.5 |
3100×650×900 |
1 |
|
ZTZY-315 |
2～5/1.6 |
315 |
16 |
11 |
4100×790×1320 |
2 |
|
ZTZY-400 |
5～13/2 |
400 |
10 |
22 |
4700×990×1420 |
4 |
|
ZTZY-500 |
8～18/3.3 |
500 |
9 |
37 |
6100×1200×1500 |
6 |
|
ZTZY-630 |
15～35/4.2 |
630 |
9 |
45 |
6800×1350×1650 |
7.5 |
|
ZTZY-800 |
25～50/7 |
800 |
7 |
75 |
7500×2300×2200 |
9 |
|
ZTZY-1000 |
30～70/8.5 |
1000 |
6 |
90 |
8100×2700×2600 |
12 |
