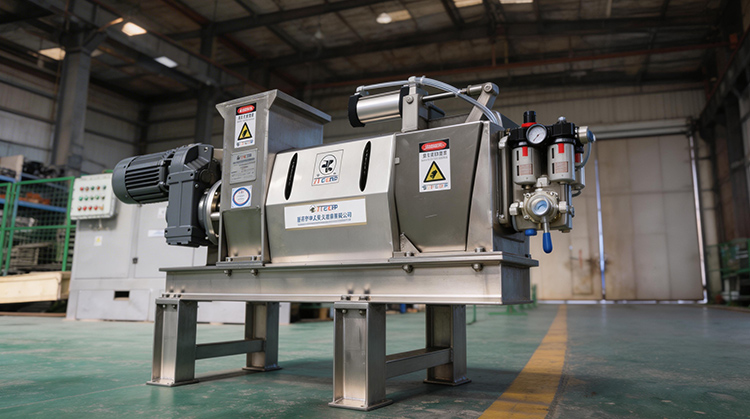

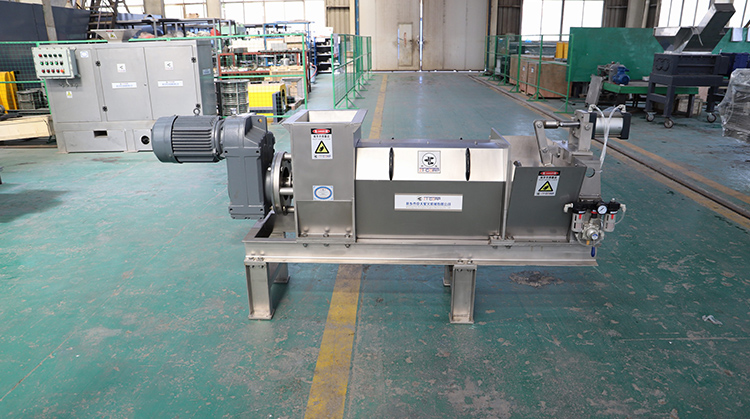

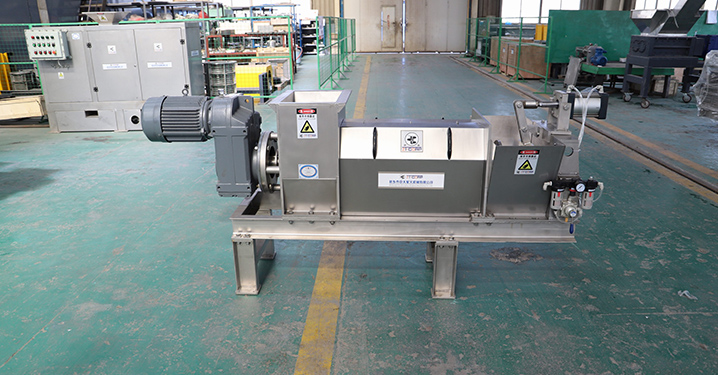

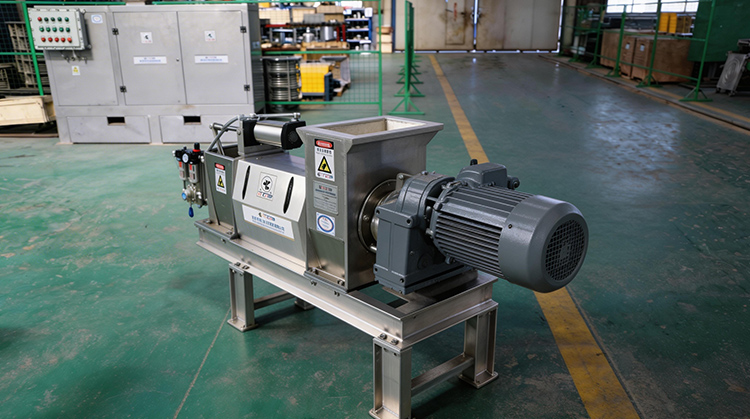

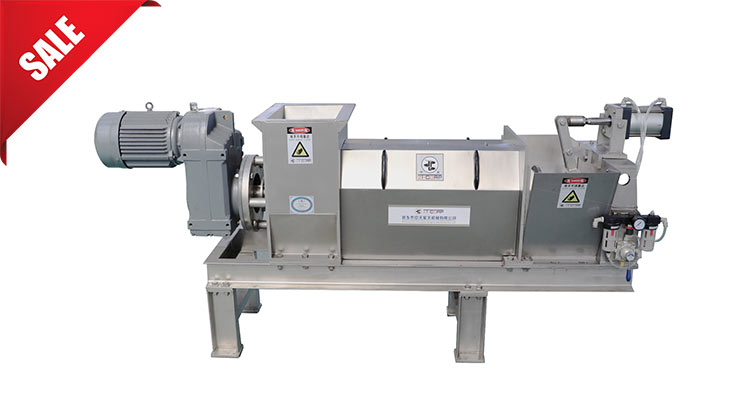

Fruit and vegetables screw press extractor suitable for juicing different kinds of fruits and vegetables, this is an industrial fruit and vegetable juicer, which widely used in food factories, beverage factories.
Send Message
The screw press machine has self-crushing function and extrusion function, juice yield up to 85%, which perfectly squeeze fruits and vegetables. Various spare parts and contact parts with fruits and vegetables reached food-grade standards. The fruit squeeze machine is easy to clean, it is a fruit and vegetable juicer worthy of user's choice.
For some materials, it can also achieve better juice effect if equipped with our company's pendulum crusher.
1.Continuous operation, save human cost.
2.Low speed stable operation, material temperature does not rise.
3.Dewatering juice for organic materials.
4.Separate slag and liquid for inorganic materials.
|
Model |
Capacity（t/h） |
screw diameter（mm） |
rotate speed（r/min） |
Power（kw） |
· |
Weight（t） |
|
ZTZY-120 |
0.1～0.3/0.26 |
120 |
30 |
2.2/3 |
1900×420×700 |
0.5 |
|
ZTZY-180 |
0.3～1/0.5 |
180 |
20 |
5.5 |
2500×550×800 |
0.8 |
|
ZTZY-250 |
0.8～3/0.93 |
250 |
16 |
7.5 |
3100×650×900 |
1 |
|
ZTZY-315 |
2～5/1.6 |
315 |
16 |
11 |
4100×790×1320 |
2 |
|
ZTZY-400 |
5～13/2 |
400 |
10 |
22 |
4700×990×1420 |
4 |
|
ZTZY-500 |
8～18/3.3 |
500 |
9 |
37 |
6100×1200×1500 |
6 |
|
ZTZY-630 |
15～35/4.2 |
630 |
9 |
45 |
6800×1350×1650 |
7.5 |
|
ZTZY-800 |
25～50/7 |
800 |
7 |
75 |
7500×2300×2200 |
9 |
|
ZTZY-1000 |
30～70/8.5 |
1000 |
6 |
90 |
8100×2700×2600 |
12 |
