Description

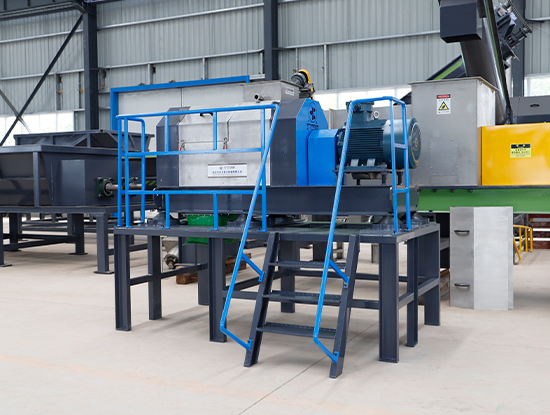

Fiber Crusher
Fiber crusher is used for crushing all kinds of dry and wet fiber materials and large mass rhizome materials. Especially when crushing wet fiber materials, it won’t be winding, blocking and jamming. Typical application in the market is crushing vegetable garbage and vegetable market garbage. Matching up with our screw press machine, perfect solve the problem of granularity and humidity requirements before the organic waste fermentation.
Technical Parameter
| Model | Capacity (t/h) | Power | Rotation speed (r/min) | Diameter L*W*H (mm) | Weight(t) | |
| Herbaceous plant | Radish | |||||
| ZTXP400 | 2 | 5 | 18.5 | 1600 | 2800*700*1200 | 0.85 |
| ZTXP650 | 5 | 15 | 30 | 1600 | 3000*1000*1200 | 1.5 |
| ZTXP800 | 8 | 25 | 37 | 1400 | 4000*1200*1500 | 2 |
| ZTXP1000 | 10 | 30 | 45 | 1300 | 4000*1400*1600 | 3 |
| ZTXP1250 | 15 | 45 | 55 | 1300 | 4500*1700*2200 | 5 |
| ZTXP1500 | 20 | 60 | 75 | 1000 | 7000*2200*2600 | 10 |
| ZTXP2000 | 30 | - | 90 | 900 | 7000*2900*2800 | 12 |
| ZTXP3000 | 50 | - | 110 | 900 | 10000*4500*3800 | 18 |
Advantage
1.Better effect for wet, long fiber materials. No winding and sticking knife, no jamming.
2.Suitable for large capacity crushing.
3.Production is 6 times more than the old hammer crusher, energy saving 3-5 times.
4.Special discharging device to avoid wet fiber clogging mesh.
5.Discharging fineness can be adjusted to 3mm.
6.Contact part and appearance are all stainless steel.
7.Electrical overload protection.
Working principle
The fiber crusher uses a high-speed rotating blade to break materials. It is composed of feeding belt conveyor, rotor, blade, washboard, screw conveyor discharging and frame. Dry or wet materials transported by belt conveyor to the crushing chamber formed by the rotor, blade and washboard, under the action of high speed blade cutting, the material is broken to the required particle size and falls down to the discharge screw conveyor. Finally, materials will be sent to designated place by screw conveyor.
Application
1. Kitchen waste, fruit and vegetable waste, vegetable tail and other organic solid waste;
2. Crushing of large quantities, large chunks of fruits and vegetables, roots and tubers. Such as celery, cabbage, carrot, sweet potato, beet, ginger, Jerusalem artichoke, pineapple and so on;
3. All kinds of peel, astragalus grass, water lily, water hyacinth and other biomass energy;
4. Agricultural and forestry waste, flowers, all kinds of plant roots.
