Description

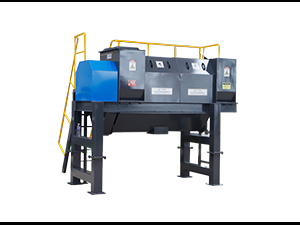

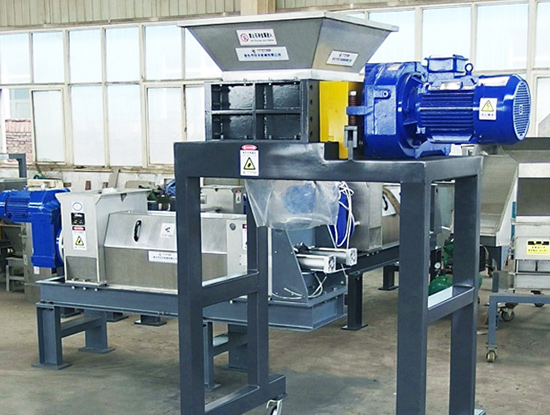

Shear Type Crusher
Shear type crusher is used for size reduction before screw press dewatering. To realize the fine crushing, you can set up this shear type crusher first, then put materials into pendulum crusher. Finally goes to screw press dewatering machine. Especially for kelp crushing.
Technical Parameter
| Model | Capacity（t/h） | Main power | Rotate speed（r/min） | Blade diameter（mm） | Inlet dimension L×W（mm） | Weight （t） |
| Household waste | ||||||
| ZTJDP300 | 0.8 | 5.5 | 13～35 | 170 | 300×300 | 0.6 |
| ZTJDP500 | 1.5 | 11 | 13～25 | 270 | 500×500 | 1.3 |
| ZTJDP650 | 2～3 | 18.5 | 13～25 | 270 | 600×500 | 2 |
| ZTJDP830 | 3～4 | 22 | 13～25 | 270 | 800×500 | 3.5 |
| ZTJDP1050 | 6～10 | 2×30 | 13～25 | 400 | 1000×750 | 5 |
| ZTJDP1250 | 20～35 | 2×37 | 13～25 | 400 | 1200×750 | 5.6 |
| ZTJDP1590 | 35～55 | 2×45 | 13～25 | 400 | 1500×750 | 12 |
| ZTJDP1800 | 45～70 | 2×55 | 13～25 | 400 | 1800×750 | 15 |
Advantage
1.Low speed, high torque, stable and reliable, low noise.
2.Blade: good machinability and long service life.
3.Customized hopper: it’s more reasonable into the production line for mass production.
4.PLC control: high efficient and more safe.
5.Equipped with multiple intelligent protection: mechanical and electrical protection, main motor starting protection, automatic feed relaxation to prevent overload, motor stuck overload, automatic reversal to re-break materials and other protection (reversal times can be adjusted).
Working principle
The material is crushed and reduced in size by cutting, tearing and extrusion, then put it into the extruder feeding box directly or by using the belt conveyor. If you require further fine crushing, you can put it into our company's pendulum crusher to achieve fine crushing.
Application
1.Household waste, medical waste, leather waste.
2.Marine algae, banana trees, palm trees.
3.Mainly used for crushing toughness, hardness materials.
