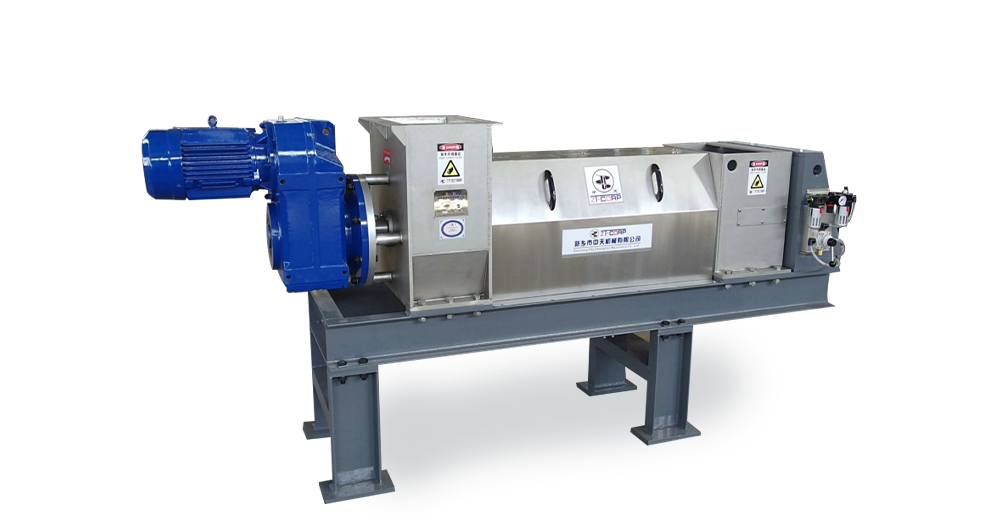

Dewatering Screw Press ZTZY-250

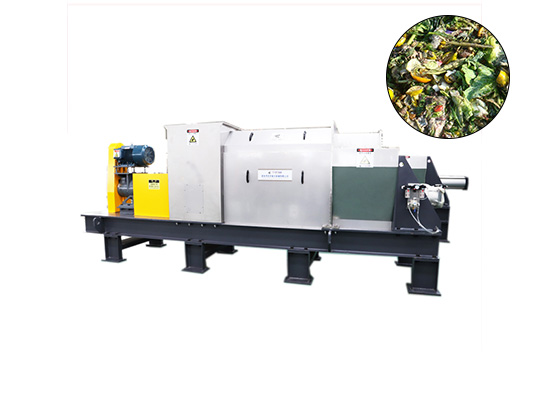

This is a screw dehydrator that can be widely used in food factories to handle materials that need to be dehydrated during food processing. Such as: pectin fiber dehydration, Sichuan pepper juice, food additives dehydration. It can also be used for the disposal of scraps in food factories. Such as: pickle scraps reduction, potato peel reduction, tea grounds coffee grounds reduction, seasoning reduction, etc.
Our screw press dehydrator have 9 models, which can meet the needs of different production. For large capacity screw press machine, you can choose feeding and discharging conveying equipment of our factory, then equipped with electronic control system, which achieve one-click operation.
You can also customize the screw press dehydrator for your demands according to the material you handle.
Our screw press dehydrator have 9 models, which can meet the needs of different production. For large capacity screw press machine, you can choose feeding and discharging conveying equipment of our factory, then equipped with electronic control system, which achieve one-click operation.
You can also customize the screw press dehydrator for your demands according to the material you handle.
Technical Parameter
| Model | Capacity（t/h） | screw diameter（mm） | rotate speed（r/min） | Power（kw） | Dimensions: length * width * height（mm） | Weight（t） |
| ZTZY-120 | 0.1～0.3/0.26 | 120 | 30 | 2.2/3 | 1900×420×700 | 0.5 |
| ZTZY-180 | 0.3～1/0.5 | 180 | 20 | 5.5 | 2500×550×800 | 0.8 |
| ZTZY-250 | 0.8～3/0.93 | 250 | 16 | 7.5 | 3100×650×900 | 1 |
| ZTZY-315 | 2～5/1.6 | 315 | 16 | 11 | 4100×790×1320 | 2 |
| ZTZY-400 | 5～13/2 | 400 | 10 | 22 | 4700×990×1420 | 4 |
| ZTZY-500 | 8～18/3.3 | 500 | 9 | 37 | 6100×1200×1500 | 6 |
| ZTZY-630 | 15～35/4.2 | 630 | 9 | 45 | 6800×1350×1650 | 7.5 |
| ZTZY-800 | 25～50/7 | 800 | 7 | 75 | 7500×2300×2200 | 9 |
| ZTZY-1000 | 30～70/8.5 | 1000 | 6 | 90 | 8100×2700×2600 | 12 |
Advantage
1.Continuous operation, save human cost.
2.Low speed stable operation, material temperature does not rise.
3.Dewatering juice for organic materials
4.Separate slag and liquid for inorganic materials
5.Adopts the superposition compression principle, not blocking screen stencil.
6.High dehydration rate or juice rate, some fruits and vegetables reach 85% juice rate, some materials after dehydration dry up to 20%, to achieve good press effect.
7.Suitable for long, short, hard, soft, smooth, sticky, astringent, thin, thick, granule, powder any material.
8.High pressure spraying, no need take down screen, easy to clean.
Working principle
The dewatering screw press is designed according to the superposition compression principle, mainly achieves the purpose of material press separation by the cooperation of the feeding box, spiral, screen stencil and tail cone.
Material to be treated is uniformly transported to the inlet of the dewatering screw press equipment, by means of a pump or a spiral conveyor, filtered by a spiral blade and screen, then water or juice is collected through a sieve to a water tray below the machine.
After being taken up by the pipeline, the slag separated by the press is conveyed to the storage place through the conveyor belt.
Material to be treated is uniformly transported to the inlet of the dewatering screw press equipment, by means of a pump or a spiral conveyor, filtered by a spiral blade and screen, then water or juice is collected through a sieve to a water tray below the machine.
After being taken up by the pipeline, the slag separated by the press is conveyed to the storage place through the conveyor belt.
Application
This screw press dewatering equipment mainly used for the extraction of pharmaceutical products, Which minimize the waste of liquid medicine. Our screw press extruder has a high reputation at home and abroad. Because it has features with high stability, continuous operation, good extrusion dryness, high liquid output rate. It can be applied to handling isatidis root, golden chrysanthemum, astragalus, safflower, pueraria root, Reishi and so on.
