Description

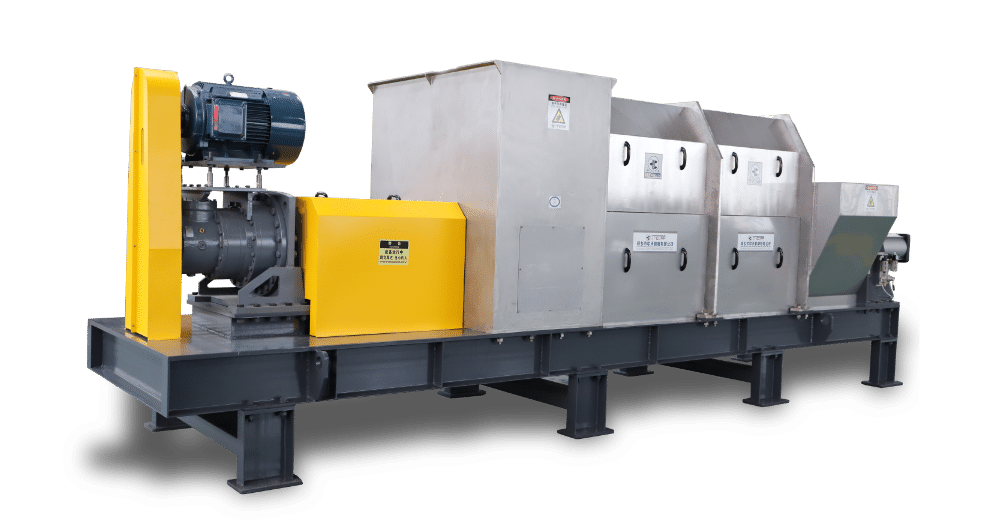

Dewatering Screw Press ZTZY-630
Kitchen waste dewatering machine can be used for food waste, kitchen waste, fruit and vegetable waste and other organic waste water reduction treatment.
These wastes are rich in organic matter, protein, cellulose, starch, fat and so on. They are high salt content, high acetic acid and has pathogenic bacteria, microorganisms etc. If we don’t handling waste in time, it is easy to rot and deteriorate.
The kitchen waste dehydrator plays a very important role in the dewatering treatment of these organic matter. The reduction rate varies from 50%-90% according to the raw material. All parts in contact with the material are acid-resistant and alkali-resistant materials. The quality of the machine is reliable and the wearing parts are few. Large kitchen waste treatment production line also needs to be equipped with storage bin, bag breaking machine, screw conveying equipment etc.
These wastes are rich in organic matter, protein, cellulose, starch, fat and so on. They are high salt content, high acetic acid and has pathogenic bacteria, microorganisms etc. If we don’t handling waste in time, it is easy to rot and deteriorate.
The kitchen waste dehydrator plays a very important role in the dewatering treatment of these organic matter. The reduction rate varies from 50%-90% according to the raw material. All parts in contact with the material are acid-resistant and alkali-resistant materials. The quality of the machine is reliable and the wearing parts are few. Large kitchen waste treatment production line also needs to be equipped with storage bin, bag breaking machine, screw conveying equipment etc.
Technical Parameter
| Model | Capacity（t/h） | screw diameter（mm） | rotate speed（r/min） | Power（kw） | Dimensions: length * width * height（mm） | Weight（t） |
| ZTZY-120 | 0.1～0.3/0.26 | 120 | 30 | 2.2/3 | 1900×420×700 | 0.5 |
| ZTZY-180 | 0.3～1/0.5 | 180 | 20 | 5.5 | 2500×550×800 | 0.8 |
| ZTZY-250 | 0.8～3/0.93 | 250 | 16 | 7.5 | 3100×650×900 | 1 |
| ZTZY-315 | 2～5/1.6 | 315 | 16 | 11 | 4100×790×1320 | 2 |
| ZTZY-400 | 5～13/2 | 400 | 10 | 22 | 4700×990×1420 | 4 |
| ZTZY-500 | 8～18/3.3 | 500 | 9 | 37 | 6100×1200×1500 | 6 |
| ZTZY-630 | 15～35/4.2 | 630 | 9 | 45 | 6800×1350×1650 | 7.5 |
| ZTZY-800 | 25～50/7 | 800 | 7 | 75 | 7500×2300×2200 | 9 |
| ZTZY-1000 | 30～70/8.5 | 1000 | 6 | 90 | 8100×2700×2600 | 12 |
Advantage
1.Continuous operation, save human cost.
2.Low speed stable operation, material temperature does not rise.
3.Dewatering juice for organic materials
4.Separate slag and liquid for inorganic materials
5.Adopts the superposition compression principle, not blocking screen stencil.
6.High dehydration rate or juice rate, some fruits and vegetables reach 85% juice rate, some materials after dehydration dry up to 20%, to achieve good press effect.
7.Suitable for long, short, hard, soft, smooth, sticky, astringent, thin, thick, granule, powder any material.
8.High pressure spraying, no need take down screen, easy to clean.
Working principle
The dewatering screw press is designed according to the superposition compression principle, mainly achieves the purpose of material press separation by the cooperation of the feeding box, spiral, screen stencil and tail cone.
Material to be treated is uniformly transported to the inlet of the dewatering screw press equipment, by means of a pump or a spiral conveyor, filtered by a spiral blade and screen, then water or juice is collected through a sieve to a water tray below the machine.
After being taken up by the pipeline, the slag separated by the press is conveyed to the storage place through the conveyor belt.
Material to be treated is uniformly transported to the inlet of the dewatering screw press equipment, by means of a pump or a spiral conveyor, filtered by a spiral blade and screen, then water or juice is collected through a sieve to a water tray below the machine.
After being taken up by the pipeline, the slag separated by the press is conveyed to the storage place through the conveyor belt.
Application

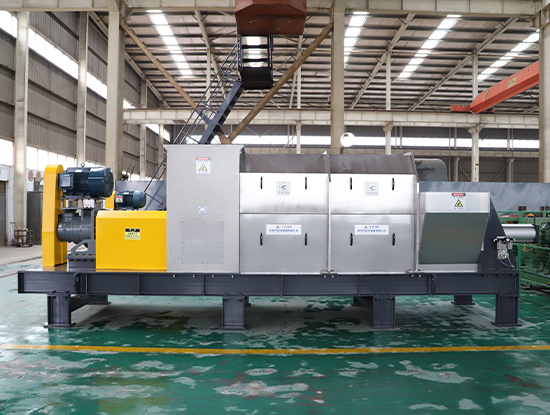

This ZTZY-630 screw press dewatering machine Can be used for kitchen, kitchen waste reduction treatment, which maximize the benefit of customers. The oil and water yield can reach 60-90%, which can maximize the collection of kitchen, kitchen waste oil and water. The extruded dry residue can be used for fuel, fertilizer, feed and so on.
